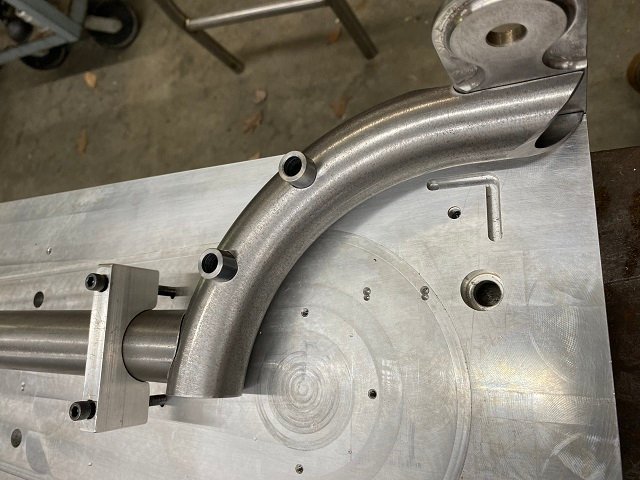

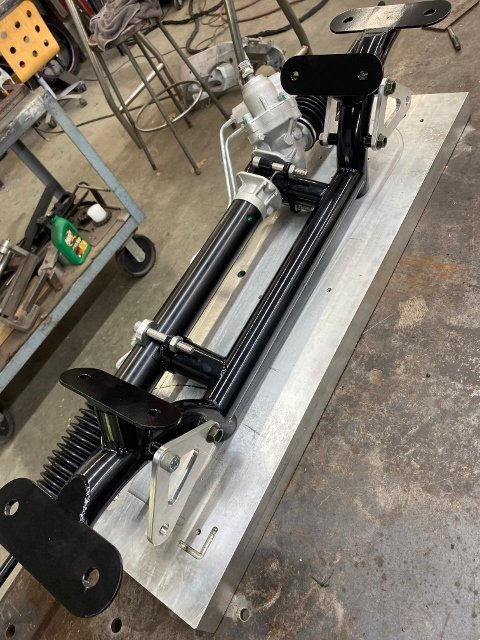

GTRbillet Posted August 15, 2024 Report Share Posted August 15, 2024 Neat cars, always like them as a kid. Here's an interesting project that I just took on for a fellow forum member who has a build in progress. 240sx top, conquest middle, tubular bottom with 240sx rack. 1 Quote Link to comment Share on other sites More sharing options...
TexasQuest Posted August 17, 2024 Report Share Posted August 17, 2024 Those tubular subframes are so nice. I wish someone reputable could make them. Quote Link to comment Share on other sites More sharing options...
GTRbillet Posted August 18, 2024 Author Report Share Posted August 18, 2024 Ya, that's me. 1 Quote Link to comment Share on other sites More sharing options...

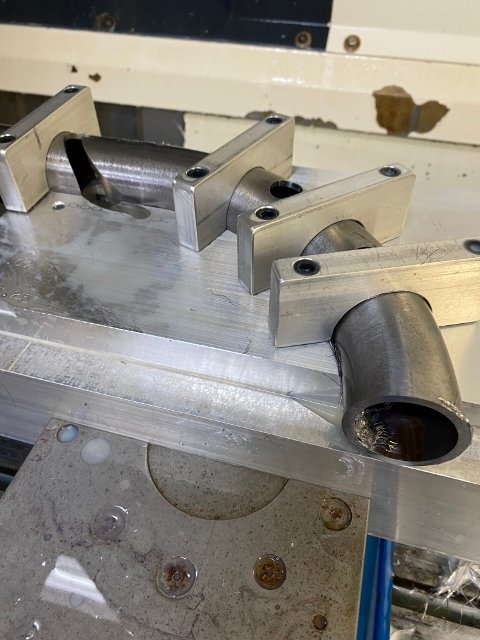

GTRbillet Posted August 18, 2024 Author Report Share Posted August 18, 2024 They are set up for production. Modeled in CAD with CNC machined fixtures and all parts are CNC machined for perfect repeatable fitment. 4 Quote Link to comment Share on other sites More sharing options...
GTRbillet Posted August 18, 2024 Author Report Share Posted August 18, 2024 All TIG welded and powder coated in house. Available in 1 5/8" x .120 wall DOM or 1 5/8" by .083 wall Chromoly. 1 Quote Link to comment Share on other sites More sharing options...
GoldStar Posted August 18, 2024 Report Share Posted August 18, 2024 The original front subframe is one of the lift points if using a floor jack. Would this be strong enough to also be used as a lift point? Regardless, very interested in the finished product 1 Quote Link to comment Share on other sites More sharing options...
GTRbillet Posted August 18, 2024 Author Report Share Posted August 18, 2024 Hi. Yes, the tube would be plenty strong enough. Though you make a good point. You wouldn't want to gouge or dent the tube. Especially if made from chromoly is actually quite thin. Maybe it would be a good idea to incorporate some kind of "lift point". As in a plate or pin welded on for the jack to interface with. I'm always open to suggestions. Thank you for your interest. 1 Quote Link to comment Share on other sites More sharing options...
LizardKing Posted August 18, 2024 Report Share Posted August 18, 2024 Nice work! X2 on Lift point.. Can't recall if anything bolts on to the original subframe. There's an air shield that helps direct the air flow that bolts up underneath but can't recall if it bolts up on subframe. Anyone have knowledge on that? Quote Link to comment Share on other sites More sharing options...
GTRbillet Posted August 19, 2024 Author Report Share Posted August 19, 2024 I have an OEM front subframe here in the shop. It's doesn't have any tapped holes or brackets etc. that would be used for any component mounting. Quote Link to comment Share on other sites More sharing options...
psu_Crash Posted August 20, 2024 Report Share Posted August 20, 2024 (edited) On 8/18/2024 at 9:15 AM, GTRbillet said: All TIG welded and powder coated in house. Available in 1 5/8" x .120 wall DOM or 1 5/8" by .083 wall Chromoly. I hope this is your personal design and you have no affiliation with NDD motorsports. Actually, I don't care if you are affiliated if you can actually deliver. NDD Fiasco That said I love the design! I also agree with a jack point. 1/4 - 3/8 plate, 4x4" or so under both ends would be ideal. Edited August 20, 2024 by psu_Crash Quote Link to comment Share on other sites More sharing options...
GTRbillet Posted August 21, 2024 Author Report Share Posted August 21, 2024 Thank you for the input. No, I have no affiliation with NDD and this IS my own design. I've been doing this (machining/fabricating) full time for 22 years now. You think a plate under each "end"? You could actually quite readily jack on the "ends" of the center tube now. I thought maybe we were talking about a center jack point? Either way I can do whatever you want if you happen to order one. I have everything here in house including the powder coating. Located in Southern New Hampshire. I can put this on my website. I didn't want to violate any forum rules by saying the name of the business etc. 1 Quote Link to comment Share on other sites More sharing options...

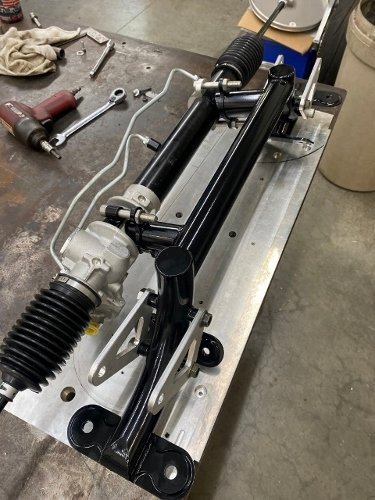

GTRbillet Posted August 21, 2024 Author Report Share Posted August 21, 2024 Here is a pic from the bottom side. The hardware shown is not production, just what I had in stock at the moment. Quote Link to comment Share on other sites More sharing options...
psu_Crash Posted August 21, 2024 Report Share Posted August 21, 2024 That really looks great! I see what you mean from the bottom. You could definitely jack from the ends of the bent tubular portion. I do currently jack up the front all at once using the middle of that crossmember. Even with your design, I bet a piece of 2x4 under the center would distribute weight enough. I am what seems like forever away from a rack swap on either of my projects, but I will definitely keep this post saved! Quote Link to comment Share on other sites More sharing options...
tux Posted August 22, 2024 Report Share Posted August 22, 2024 That's awesome, wish I didn't buy the NDD. Quote Link to comment Share on other sites More sharing options...
psu_Crash Posted August 22, 2024 Report Share Posted August 22, 2024 14 hours ago, tux said: That's awesome, wish I didn't buy the NDD. Did you actually receive it ?? Quote Link to comment Share on other sites More sharing options...
tux Posted August 22, 2024 Report Share Posted August 22, 2024 Yea. Long story, took him to court and the day before the court date I received a subframe. Didn't have a change to install yet, but I hope it fits and it has no provisions for a steering rack like it was supposed to. Quote Link to comment Share on other sites More sharing options...
GTRbillet Posted August 23, 2024 Author Report Share Posted August 23, 2024 19 hours ago, tux said: Yea. Long story, took him to court and the day before the court date I received a subframe. Didn't have a change to install yet, but I hope it fits and it has no provisions for a steering rack like it was supposed to. Happy to help with rack mounts if needed. Quote Link to comment Share on other sites More sharing options...
tux Posted August 23, 2024 Report Share Posted August 23, 2024 Appreciate it. Car has been waiting 2 years now for paint at the body shop. If it ever gets out of jail maybe Quote Link to comment Share on other sites More sharing options...
