Here's the Radiator Water Temp Switch Part Number: MB356704
So continuing with with build story. Today we focus on the Interior and Wiring.

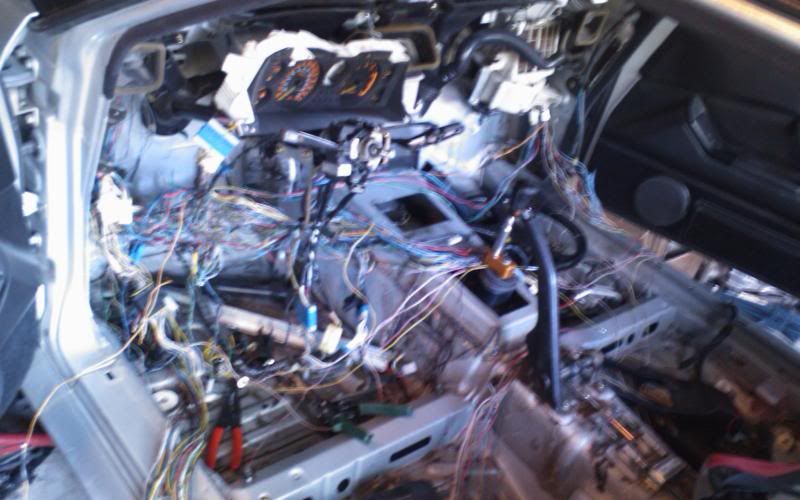

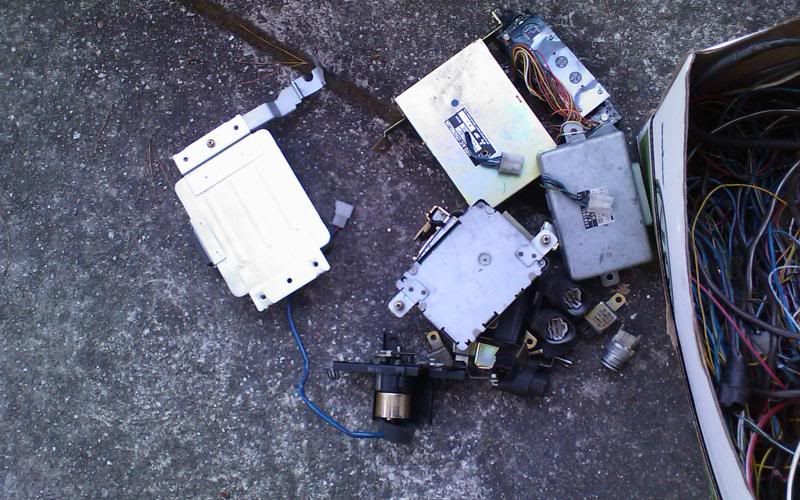

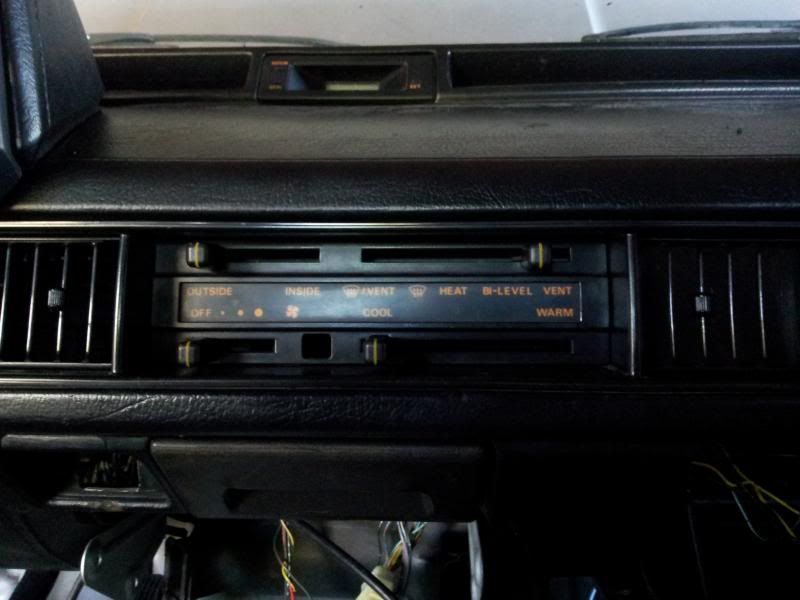

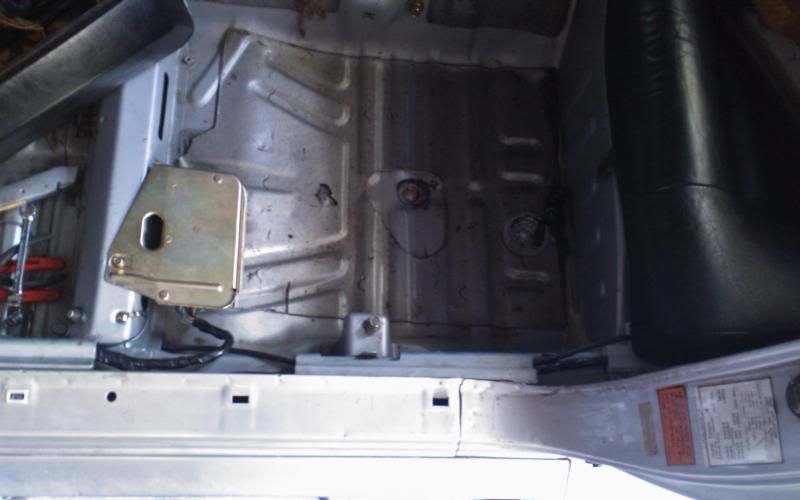

I decided that I wanted to make the car lighter by removing any un-needed Wires and sound deadening. Since I was removing the AC, ABS, Cruise control, and other electronic devices I decided I didn't want any of the wires for those systems there. I removed EVERY SINGLE WIRE from the whole car, and started from scratch:
Posted Image
Posted Image
Posted Image
Posted Image
The last photo was taken in the beginning of the process when I was still removing wires.

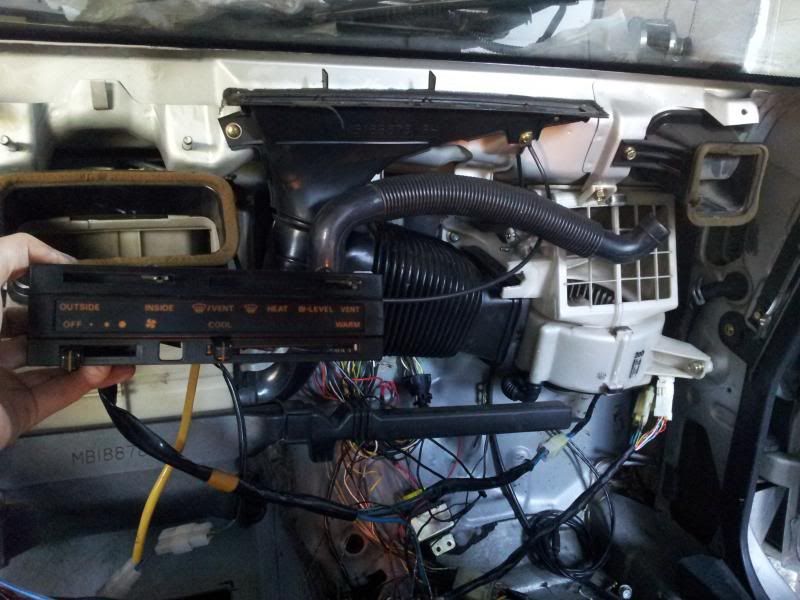

Now on top of the obvious wiring changes listed above (AC etc) were some other small electrical changes. I wanted to keep my heater functioning because I don't like being cold and in case the engine ever started to get hot during a race. Another thing I kept was the radio and dash. I wanted the car as light as possible, so I converted to 1983 style manual heater controls
Posted Image

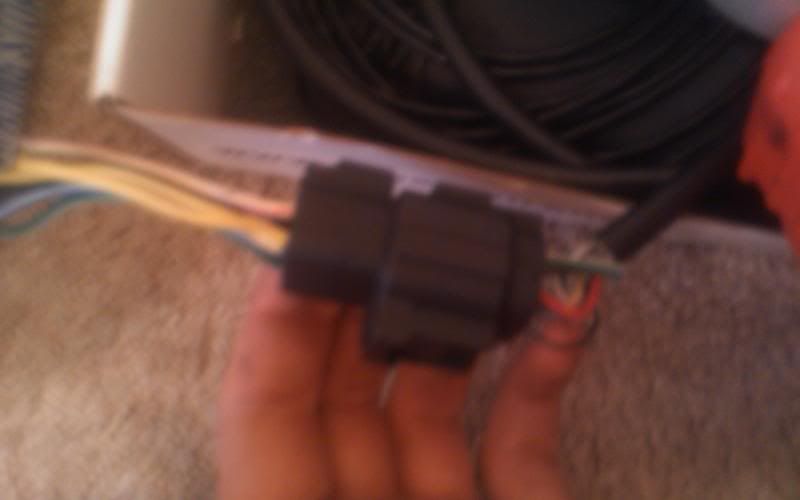

Now unfortunately I didn't grab the power resistor from the donor car so that the fan would work properly. I didn't realize since I was ditching the A/C control unit (which didn't work) I would have to change from the transistor style controller for the fan to the older power resistor style. I found a 91 mazda with a denso fan and was able to grab the resistor off that and make it work.
I wanted to integrate everything so it could be removed easily as possible. My Innovate LC-1 Wideband O2 sensor was one of those things.
Posted Image
Posted Image
Posted Image

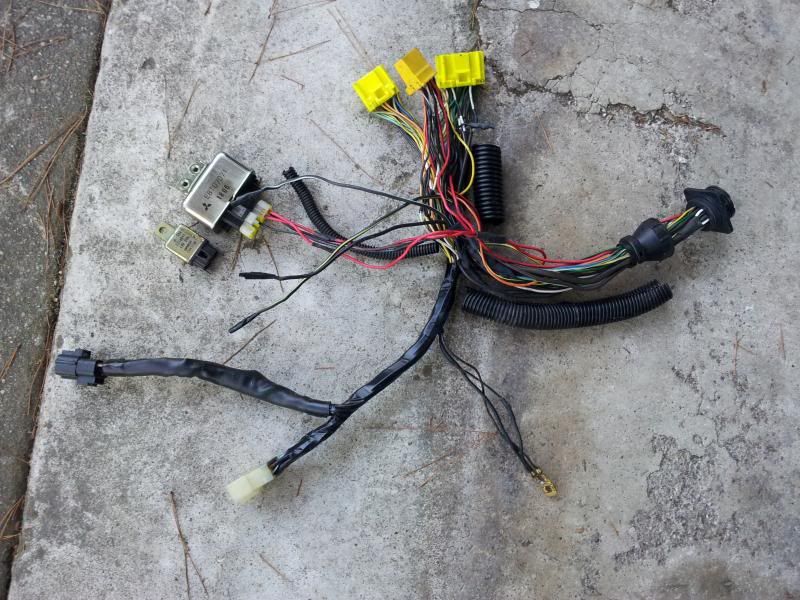

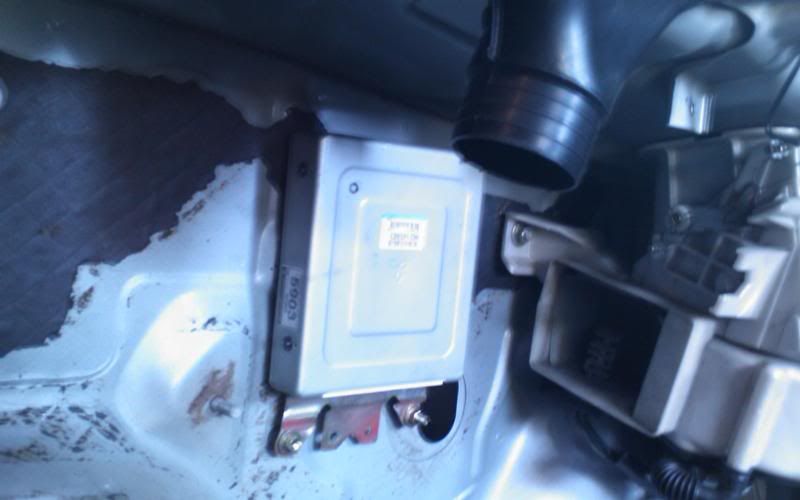

The final picture shows my ECU wiring harness, for the interior side only. I added a 38 pin molex firewall connector so that pulling the engine would be easy and wouldn't require any sensors to be unplugged. The wideband plugs into this right next to the chassis harness connector. Things like the calibration switch/LED and fuel pump relay/cut off are incorperated into this connector. Its very nice when everything works together. Here's where I ended up mounting the ECU. No more A/C unit to take up that space.
Posted Image
proof it did run at one point...
Posted Image

#43 TsTKl

TsTKl

    Member

  • Members
  • PipPipPip
  • 386 posts
  • Gender:Male
  • Location:Socal
  • Model:Conquest

Posted 29 September 2013 - 10:25 PM

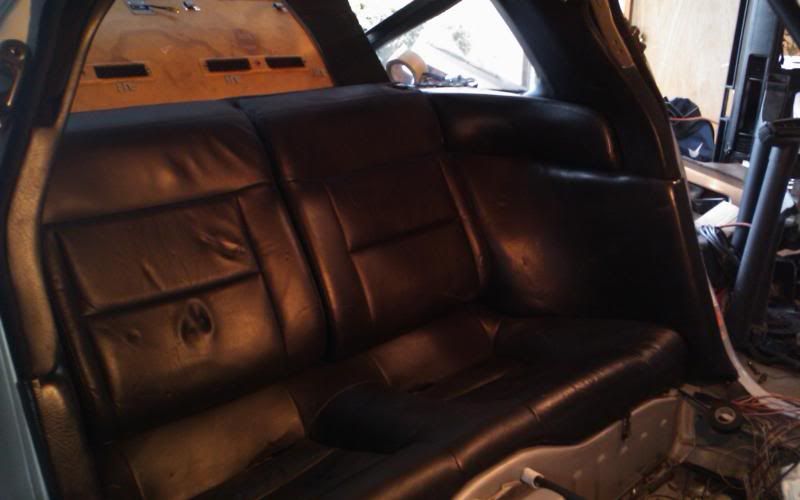

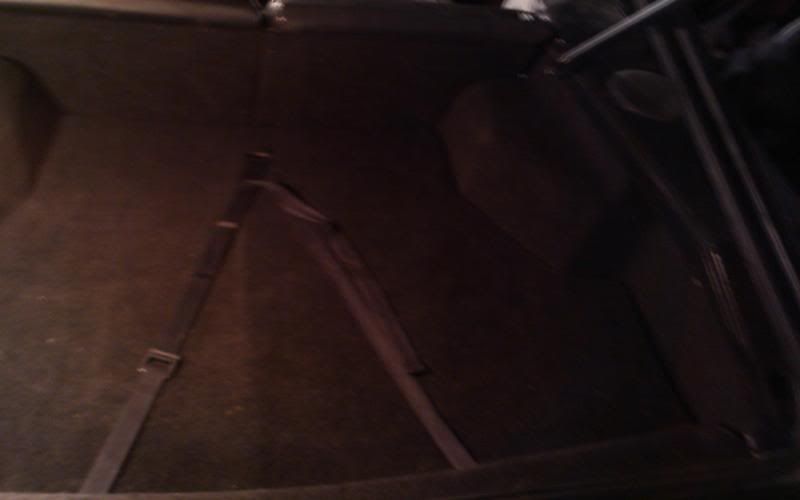

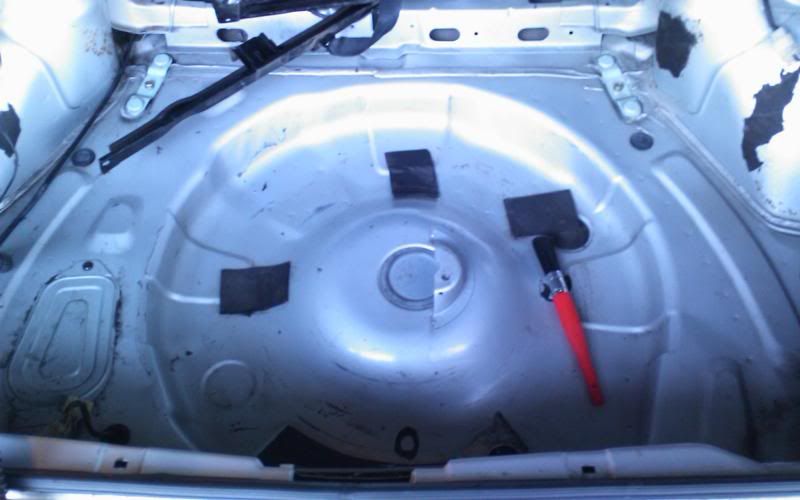

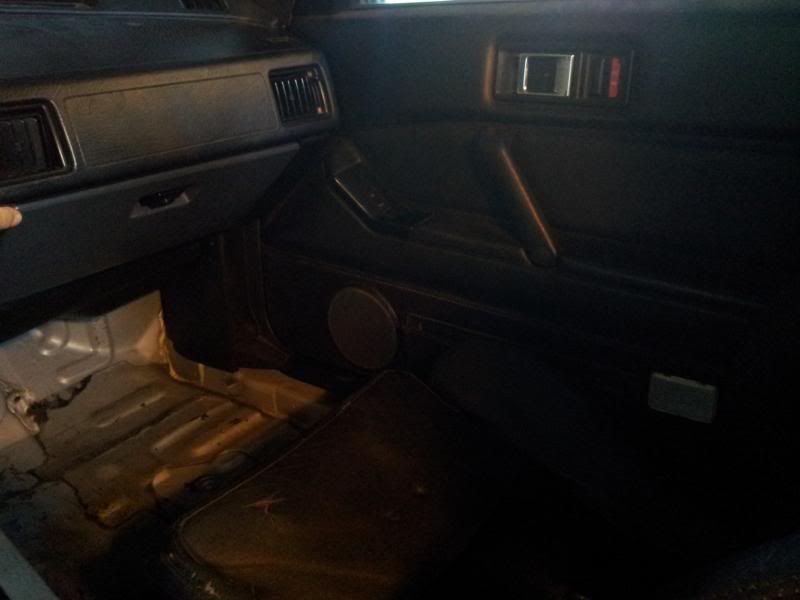

After tearing the whole thing apart, it was time to start putting things back together. I made sure I cleaned everything before re-assembling the interior.
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image

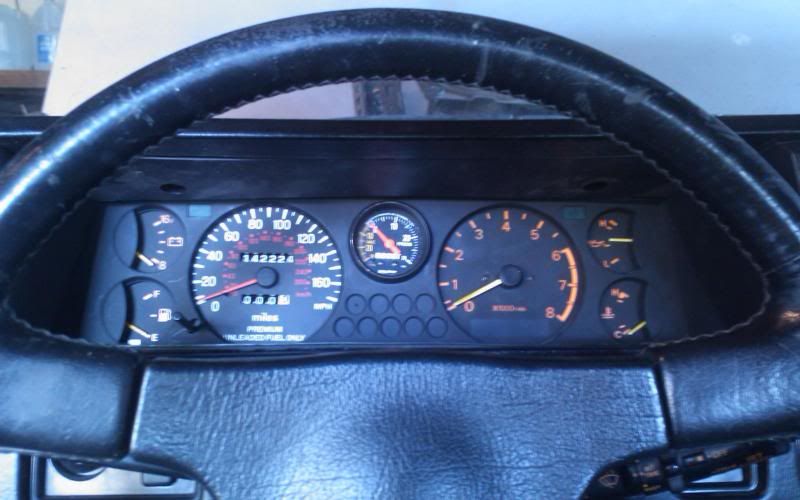

I had to convert to an electric speedometer, and was able to use a 98 eclipse speedometer. This was good since it has the same signal for speed as the ECU, meaning I would only have to convert the signal once from the T-56 transmission to the speedo, ECU, and EPS (yes, EPS).

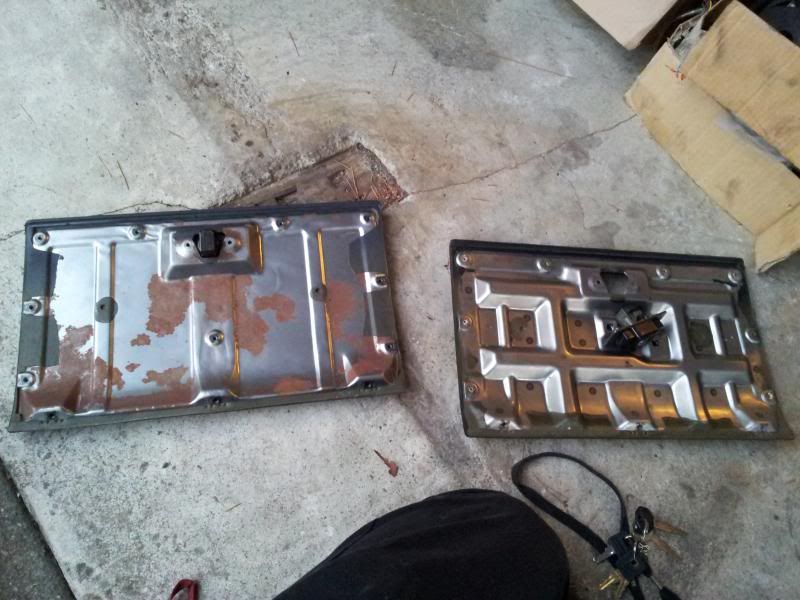

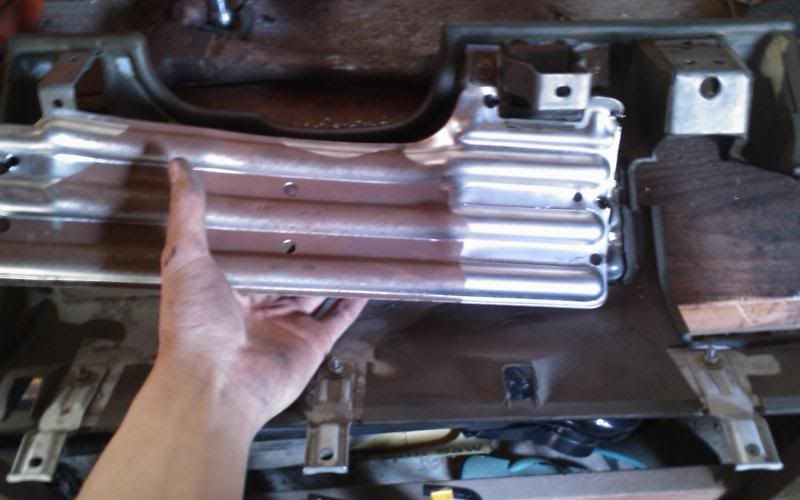

I did still want to lose as much weight as possible out of the dash despite me still using it. I found the factory shin guard had a very large un-necessary piece of metal which could be drilled out:
Posted Image
The factory 83 glove box weighed considerably less than the 88 glove box because of this:
Posted Image
And lastly, not pictured, I was able to remove the large steel bracket which follows the length of the dash. As a result, the dash is considerably lighter and easier to remove/install.
As it sits the car is 99% done interior and wiring wise. It has been very nice being able to sit in the car again and look at the interior, which I really like on these cars. The car needs some money to run again as it sits, so I can't give a timeline on when it will be "roadworthy" but believe me it will be very roadworthy once its done.
proof it did run at one point...
Posted Image

#44 creakyjoints

creakyjoints

    Established Member

  • Members
  • PipPipPip
  • 1,944 posts
  • Gender:Male
  • Location:Seattle
  • Model:Starion

Posted 30 September 2013 - 08:21 AM

I like your project! Why didnt you use the tach from the same car as the speedo?
the dude in the honda said, i thought you said your car was slow, my response was.. well you said yours was fast so i guess we both lied.. haha

#45 TsTKl

TsTKl

    Member

  • Members
  • PipPipPip
  • 386 posts
  • Gender:Male
  • Location:Socal
  • Model:Conquest

Posted 30 September 2013 - 08:14 PM

View Postcreakyjoints, on 30 September 2013 - 08:21 AM, said:

I like your project! Why didnt you use the tach from the same car as the speedo?
I'm not too big on aesthetics, so it doesn't bother me too much that they are different colors. I could always have a cover made or something. The speedo HAD to be used because it wouldn't work otherwise, while the tach still worked and bolted in easy.
I should also mention I removed ALL of the seat belts, and will be replacing the front belts with manual style belts. That saved a considerable amount of weight.
