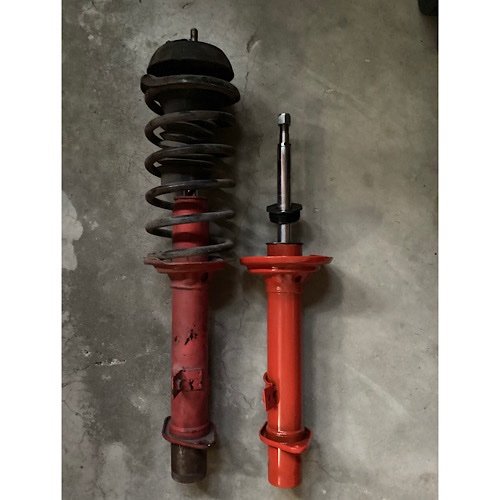

Gregster1234 Posted May 26, 2023 Report Share Posted May 26, 2023 (edited) Has anyone ever used these on their rear struts? I have the Mookeh housings with the MR 2 strut inserts and they are about 1.75 inches too short. The spacers would raise it about 2 inches. I’m just not sure if they would fit the top of the str Edited May 26, 2023 by Gregster1234 Wrong image Link to comment Share on other sites More sharing options...
860QuestTuner Posted May 27, 2023 Report Share Posted May 27, 2023 Never seen those before, What manufacturer? Link to comment Share on other sites More sharing options...
psu_Crash Posted May 28, 2023 Report Share Posted May 28, 2023 Do they give dimensions for the mounting holes? Link to comment Share on other sites More sharing options...
Gregster1234 Posted May 28, 2023 Author Report Share Posted May 28, 2023 (edited) No specs, this started when I purchased the Mookeh empty rear housings. It says to use the MR2 front inserts. The problem is they are almost 2 inches shorter so the factory coil spring will not fit. I do not want to lower the vehicle from factory. I am trying a longer rod length from a different vehicle to get a longer overall insert. The body has to remain the same length to fit Mookeh housing which is 13.125”, the piston length must be longer to accept oem spring. Edited May 28, 2023 by Gregster1234 New image Link to comment Share on other sites More sharing options...
Rayman4449 Posted November 4, 2023 Report Share Posted November 4, 2023 You make any progress on this? We actually bought the same strut rear housings and inserts and just discovered the same thing. Link to comment Share on other sites More sharing options...
Gregster1234 Posted November 7, 2023 Author Report Share Posted November 7, 2023 Yes, I wound up using the original housing with a MR2 front insert. It requires a piece of tubing to make up for the shorter insert. I just cut a piece of pipe and dropped it in, then the insert in and welded the gland nut to the housing. My threads were bad after getting the thing open. 1 Link to comment Share on other sites More sharing options...
Gregster1234 Posted November 10, 2023 Author Report Share Posted November 10, 2023 Here's how it sits after the new struts with 19"s. 1 Link to comment Share on other sites More sharing options...
Rayman4449 Posted November 10, 2023 Report Share Posted November 10, 2023 Looks great. So with that combo (original factory strut housing + MR2 front insert), how did it compare measurement wise to factory height you think? Thank you for sharing this is big help! Link to comment Share on other sites More sharing options...
Gregster1234 Posted November 13, 2023 Author Report Share Posted November 13, 2023 It is actually the same as factory height because you are also using original springs. 1 Link to comment Share on other sites More sharing options...
Rayman4449 Posted November 13, 2023 Report Share Posted November 13, 2023 This is great news! Thank you! Link to comment Share on other sites More sharing options...

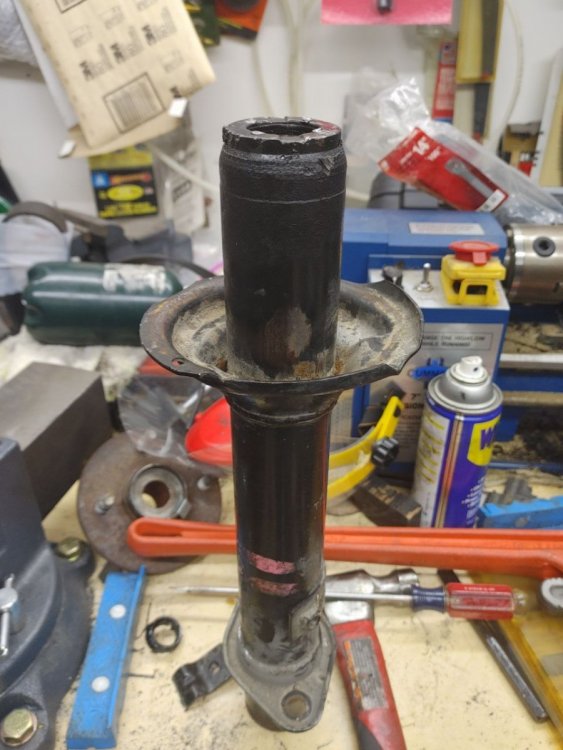

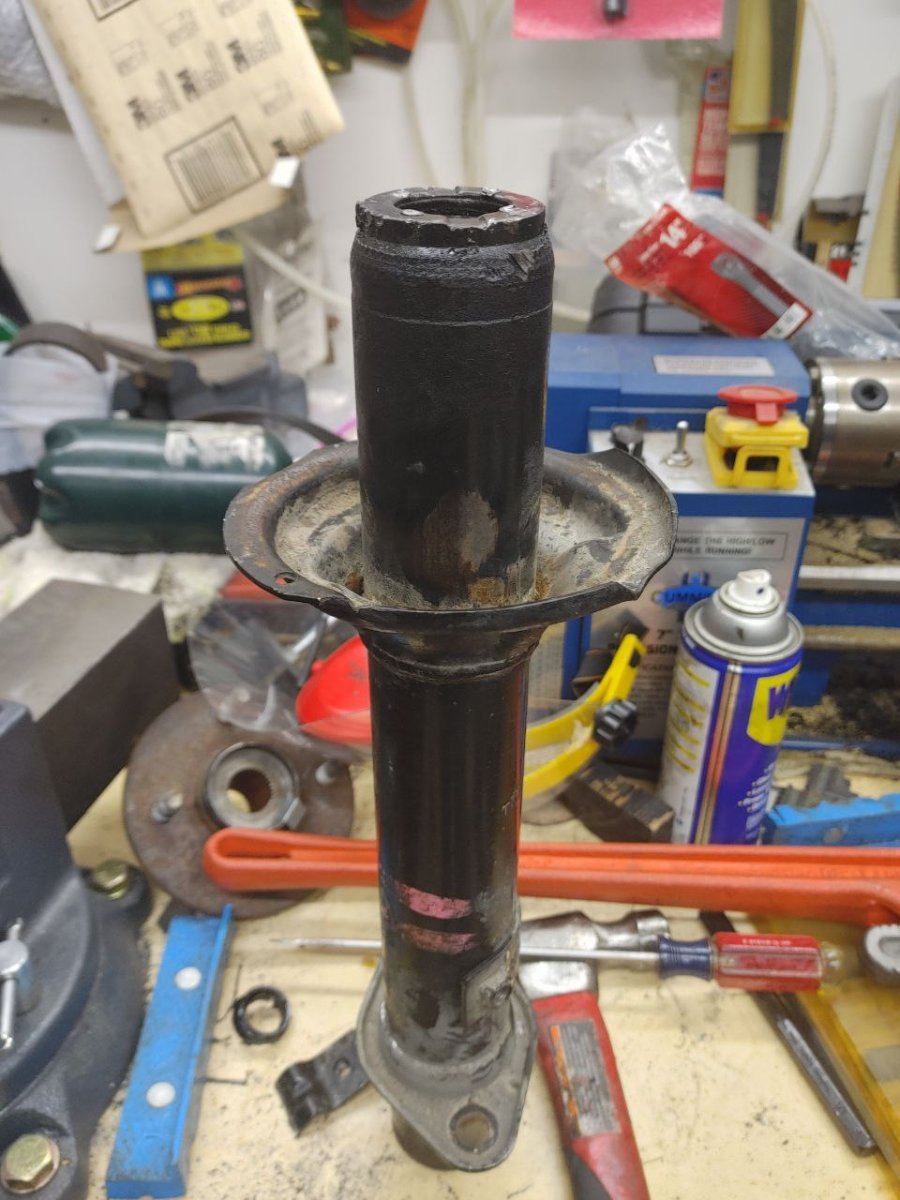

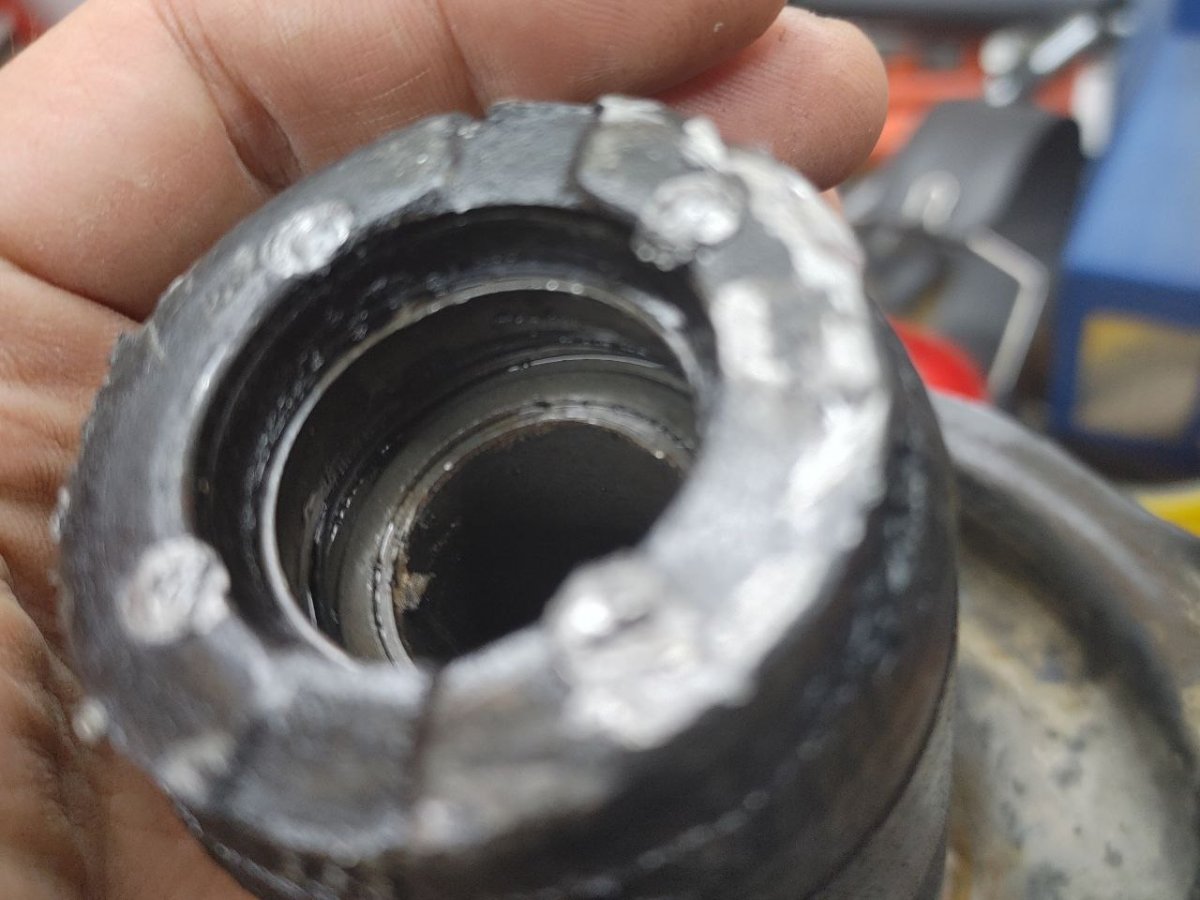

Rayman4449 Posted November 16, 2023 Report Share Posted November 16, 2023 So we found something interesting on ours. We have an 88 Conquest with the regular (non adjustable) rear strut. What we thought was the top gland nut was actually a cap that was spot welded into 4 places. (that was why we couldnt get it off, it had to sheer off) In looking at the top of the strut the top neck of the strut was welded on the top, we cant get what is inside there out without using and angle grinder to completely cut the top off. What is really odd is it looks like you have the same non-adjustable strut but it sounds like yours hand a gland nut that actually screwed off? I wonder are there 3 versions of rear strut on these cars? I guess ours looks nothing like yours. Link to comment Share on other sites More sharing options...
Rayman4449 Posted November 16, 2023 Report Share Posted November 16, 2023 FYI here is a video that covers what is required on the type of rear strut we have on our 1988 Conquest. They are hardwelded sealed. You have to cut the top of the strut off to get the internals out. You can replace with insert but requires either be hard welded back or weld on a collar piece with threads to make it serviceable. Link to comment Share on other sites More sharing options...
