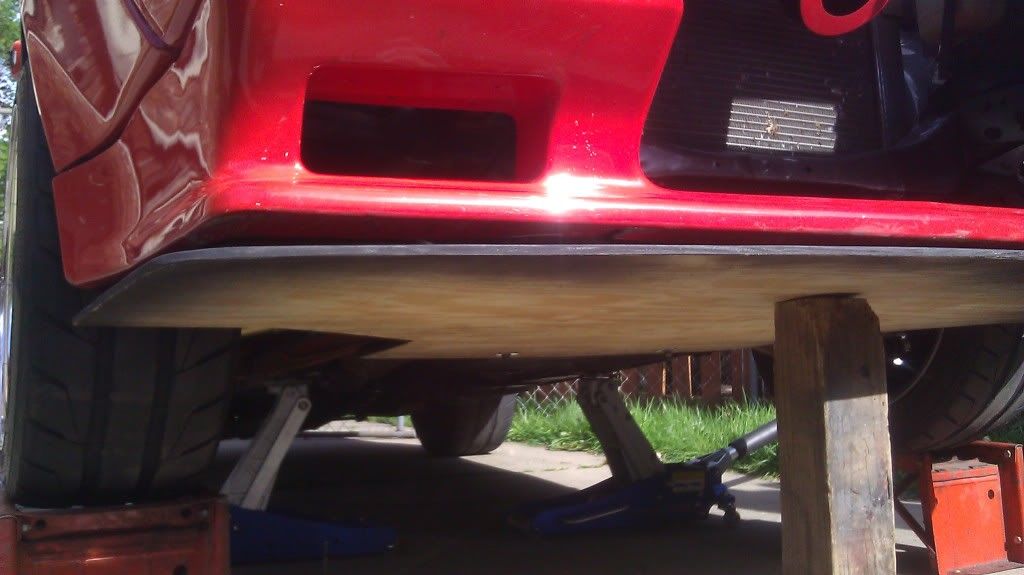

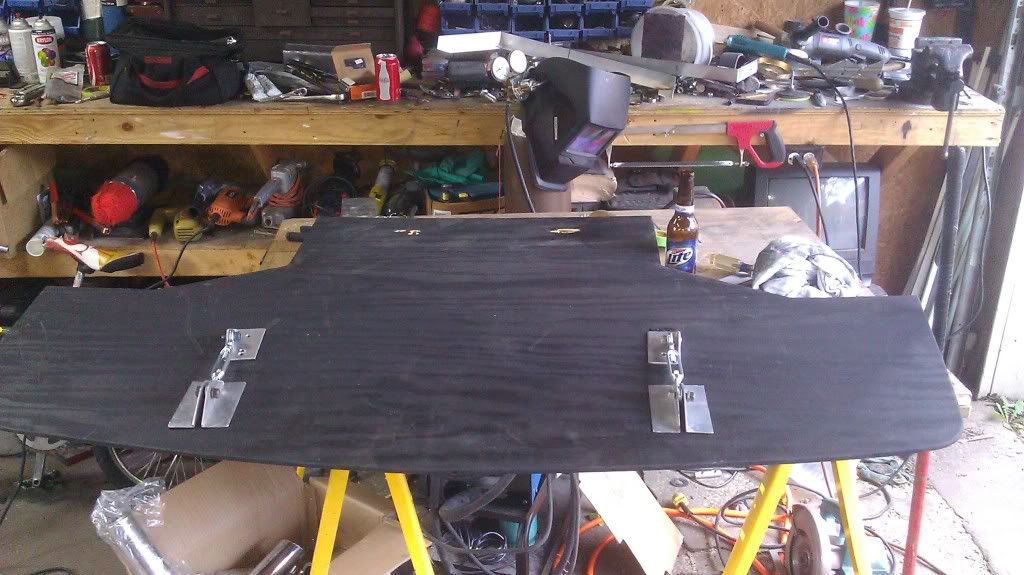

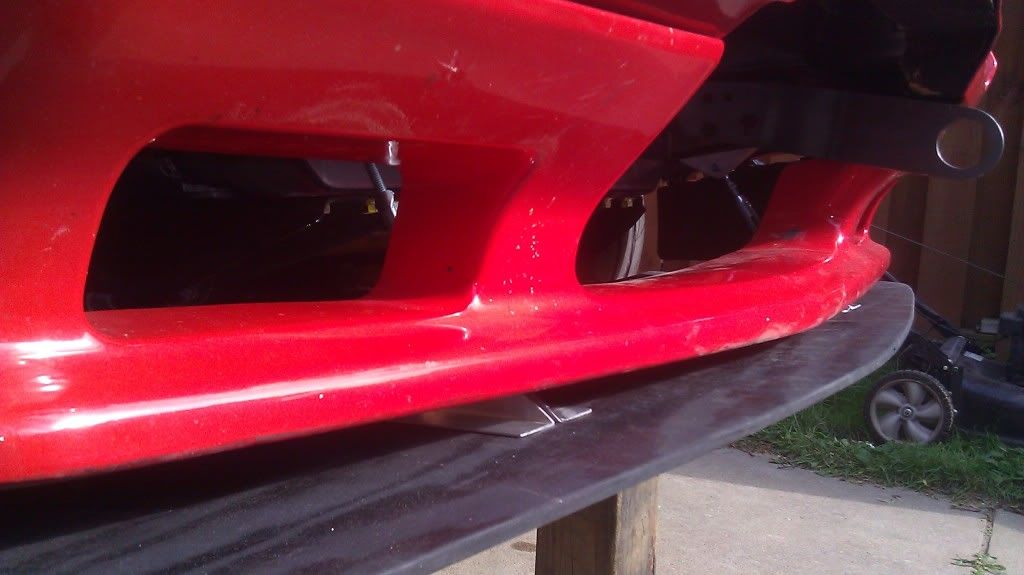

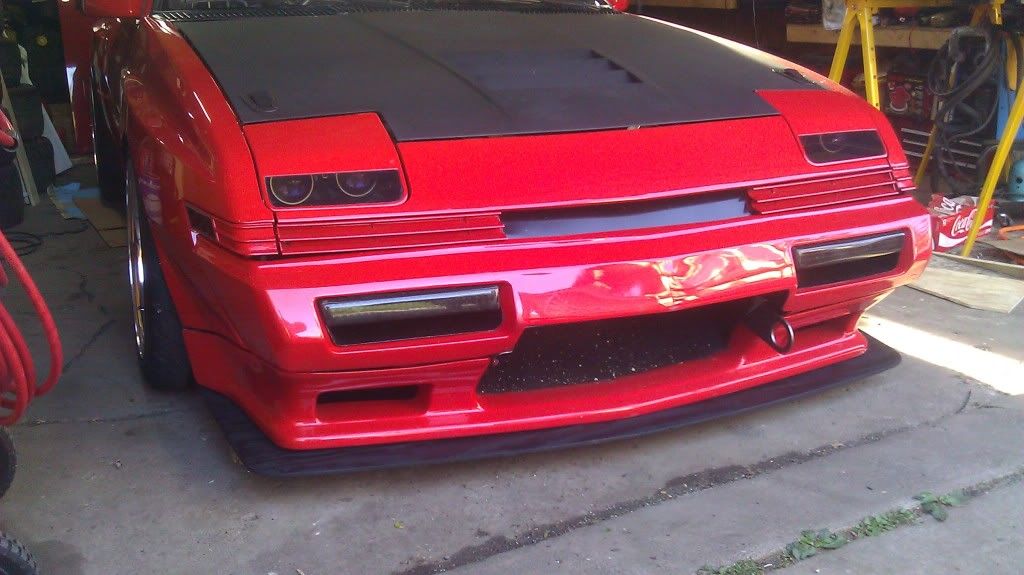

So with all this splitter stuff I finally got around to building mine.  Yes its ply wood, as it sits I have about $26 and about 4hrs.   Just need to finish painting and bolt it up.  I'm going to try a bunch of new aero enablers in the next few weeks.  I like going fast and I want to stick.

Posted Image
Posted Image
Posted Image
Posted Image
Posted Image

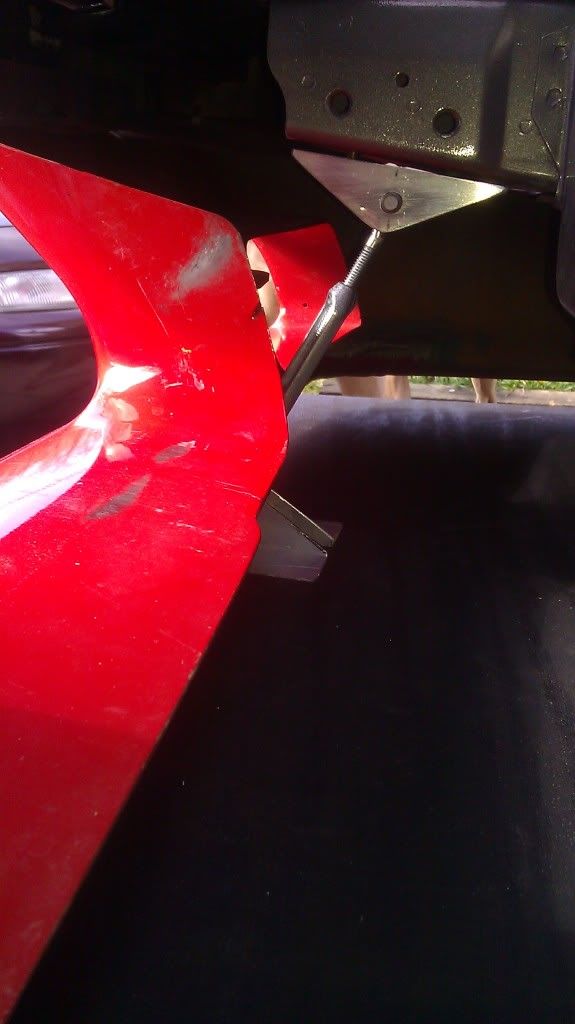

This is bolted to the front x member, and the frame rails with plent adjustment, also hidden behine the air damn.  I can also adjust it forward or back for more function.  Still to finish painting and bolt it up..
