#81 importwarrior

importwarrior

    6 Quests and Counting......

  • Moderators
  • PipPipPipPipPip
  • 17,876 posts
  • Gender:Male
  • Location:Manassas VA
  • Interests:Boost = 2KWIK4U
    Starquests
  • Model:Conquest

Posted 06 December 2016 - 08:29 AM

Scott have you seen Raspberrypi ?

wonder if it would be a good idea for in car display... ?



Lower volume before clicking this link below




Website check the SHOP section

https://www.adafruit.../categories/105

B-71 87 TSI ~ RIP

Black 87 Starion ~ Mess SOLD!!!

Proud New 89 slightly Rusted Fiji Owner !!!








#82 speedyquest

speedyquest

    Established Member

  • Members
  • PipPipPip
  • 3,772 posts
  • Gender:Male
  • Location:La Crosse Wisconsin
  • Interests:bmx, cars, computers
  • Model:Starion

Posted 06 December 2016 - 09:44 AM

He is definitely aware of them :)   I actually plan on doing something like that. You can make your own gauge ui too.

1987 Flatty Starion -- Widebody Conversion -- V-Mount Setup --  JDL Tubular Manifold  --  MX-6 Intake -- MS3-Pro -- AEM FPR  --  ARP head studs -- 3" hood exit exhaust -- Hahn Racecraft 16g --  Tial F38 Wastegate -- Tial Q Bov -- Short route piping -- 5 lug & LSD conversion -- Tubular Front End -- Manual Steering Rack Conversion -- Manual Brake Conversion -- Stack Digital Dash -- AEM UEGO -- D2 coilovers -- full GNT poly bushings & mounts -- four 8" rears -- car lightened significantly...  More to come!


Posted Image


Build Thread --->  http://www.starquest...opic=143564&hl=


#83 scott87star

scott87star

    Technically Challenged, Daily.

  • Vendors
  • PipPipPip
  • 4,886 posts
  • Gender:Male
  • Location:Mandan, NORTH DAKOTA
  • Interests:Freezing, thawing, thunderstorms and constant wind.
  • Model:Starion

Posted 06 December 2016 - 04:11 PM

You can pick the display (operating system) to match your connection, MS 2 and 3 have CAN, serial and USB directly and you can use one of many interfaces to get to Bluetooth or WiFi.  Can't think of what wouldn't work with one of those.
Now selling true plug and play megasquirt!  Absolutely the best value in stand alone ECU's out there.

I can upgrade your Fuel Injection Pro firmware

Performance Coatings!  Pistons, manifolds, bearings and more!

Now a graduate of EFI University!  www.efi101.com

ECU Vendor link:  http://www.starquest...howtopic=137426

#84 importwarrior

importwarrior

    6 Quests and Counting......

  • Moderators
  • PipPipPipPipPip
  • 17,876 posts
  • Gender:Male
  • Location:Manassas VA
  • Interests:Boost = 2KWIK4U
    Starquests
  • Model:Conquest

Posted 06 December 2016 - 09:05 PM

Would be cool to create custom gauges then.

B-71 87 TSI ~ RIP

Black 87 Starion ~ Mess SOLD!!!

Proud New 89 slightly Rusted Fiji Owner !!!




#85 sellerfeller

sellerfeller

    Member

  • Members
  • PipPip
  • 488 posts
  • Gender:Male
  • Location:Florence, Alabama
  • Model:Starion

Posted 27 October 2017 - 03:49 PM

pm'd ya
Posted Image
87 Starion - rocky white
88 Starion - palermo gray

#86 scott87star

scott87star

    Technically Challenged, Daily.

  • Vendors
  • PipPipPip
  • 4,886 posts
  • Gender:Male
  • Location:Mandan, NORTH DAKOTA
  • Interests:Freezing, thawing, thunderstorms and constant wind.
  • Model:Starion

Posted 31 October 2017 - 07:33 AM

Replied.
Now selling true plug and play megasquirt!  Absolutely the best value in stand alone ECU's out there.

I can upgrade your Fuel Injection Pro firmware

Performance Coatings!  Pistons, manifolds, bearings and more!

Now a graduate of EFI University!  www.efi101.com

ECU Vendor link:  http://www.starquest...howtopic=137426

#87 scott87star

scott87star

    Technically Challenged, Daily.

  • Vendors
  • PipPipPip
  • 4,886 posts
  • Gender:Male
  • Location:Mandan, NORTH DAKOTA
  • Interests:Freezing, thawing, thunderstorms and constant wind.
  • Model:Starion

Posted 11 May 2018 - 04:04 PM

Tired of the missing pictures in this thread, I've switched to Cubeupload and it works pretty good.

For those that don't know I'm still making plug and play systems for Starquests, they are as close to plug and play as you can get, meaning you can plug in the modified ECU, knock box and distributor into their normal locations, then wire in a new IAT (Intake Air Temperature) sensor and MAP (Manifold Absolute Pressure) sensor.  Both are GM, the MAP is 3-bar and both include connectors that you wire into your existing factory wire harness using the complete instruction provided.  You get:


Posted Image

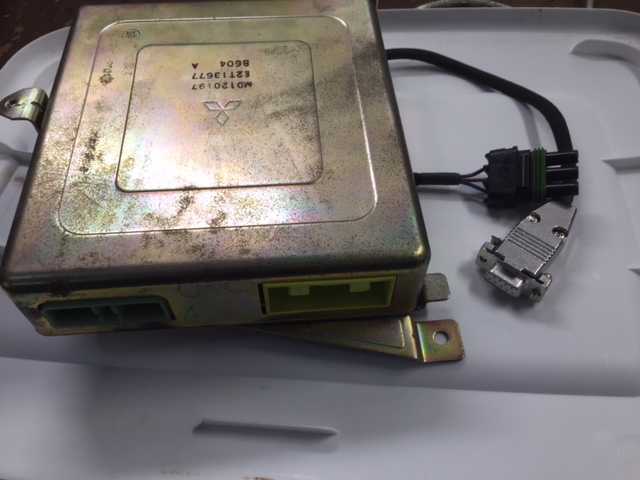

Your ECU back with two connectors hanging out the back, one is a serial connection for communication to your laptop, the other for the rpm input from the distributor.  You also get six feed of two conductor shielded wire with the connector already installed to run through the firewall to the distributor.  A quick splice into the distributor pickup wiring and that's done.




Posted Image

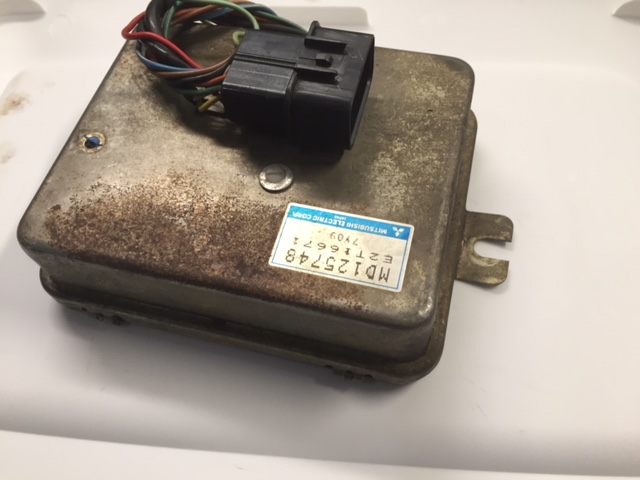

Your knock box back, 88-89 shown but whichever version you have I modify the internals to work with the new ECU and factory coil.




Posted Image

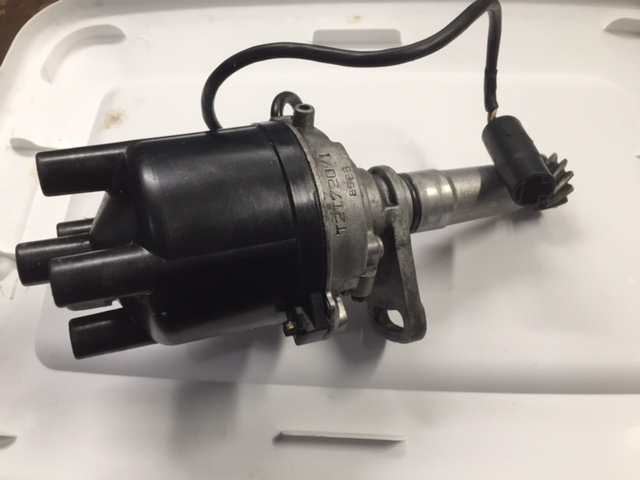

Your distributor, modified.



Posted Image

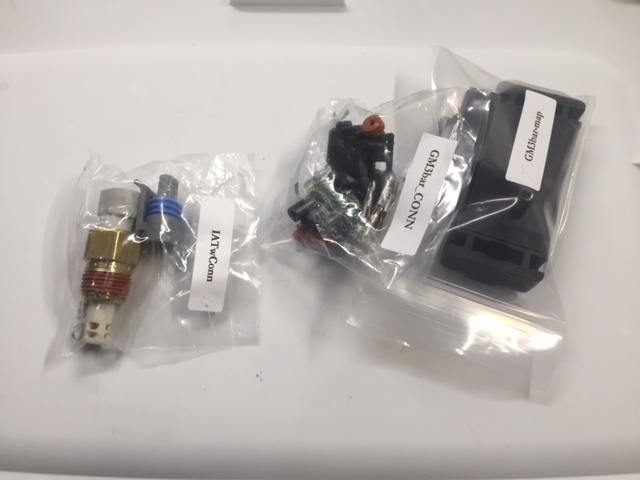

And the brand new IAT and MAP.


The ECU is the latest version MS2 surface mount board capable of full sequential injection and ignition (with appropriate cam signal, not supplied), electronic boost control, idle valve control, flex fuel, nitrous control and can accept two 0-5V signal inputs that are data loggable.  Examples of that might include fuel pressure, barometric pressure with fuel compensation, oil pressure, cooling system pressure (for those iffy head gaskets) or suspension travel.  It also has CAN (Controller Area Network) which would drive an electronic dash or get sensor data from an I/O extender.

Edited by scott87star, 13 May 2018 - 09:46 AM.

Now selling true plug and play megasquirt!  Absolutely the best value in stand alone ECU's out there.

I can upgrade your Fuel Injection Pro firmware

Performance Coatings!  Pistons, manifolds, bearings and more!

Now a graduate of EFI University!  www.efi101.com

ECU Vendor link:  http://www.starquest...howtopic=137426

#88 importwarrior

importwarrior

    6 Quests and Counting......

  • Moderators
  • PipPipPipPipPip
  • 17,876 posts
  • Gender:Male
  • Location:Manassas VA
  • Interests:Boost = 2KWIK4U
    Starquests
  • Model:Conquest

Posted 11 May 2018 - 07:32 PM

Amazing. I need one of those.

B-71 87 TSI ~ RIP

Black 87 Starion ~ Mess SOLD!!!

Proud New 89 slightly Rusted Fiji Owner !!!




#89 TexasQuest

TexasQuest

    Advanced Member

  • Members
  • PipPipPipPip
  • 8,540 posts
  • Gender:Male
  • Location:Sunnyvale, Texas
  • Interests:TSi's & VR4's
  • Model:Conquest

Posted 12 May 2018 - 08:06 AM

What an awesome package!
88 Fiji Blue -Tsi
Zoom clutch, Fidanza flywheel, Stedebani shifter, KSport coilovers, ST swaybars, abs delete, a/c delete, cruise delete, JVE, BSEK, TEP steel brake lines, LSP braided cooler lines, CX Racing radiator,  MK1 silicone hoses, MK1 pullies, *DM hard pipes & intercooler,14G turbo, ported exh. manifold, MAF Translator, 3.5" GM maf, Turbo XS RFL bov, *DM 3" exhaust, Cusco front strut bar, TEP rear strut bar, Enkei 92's, HKS turbo timer, AEM wideband, AEM boost gauge, AEM oil pressure gauge, Hallman boost controller
Posted Image

View PostJohnnyWadd, on 04 March 2010 - 10:01 PM, said:

my shaft was big i dont know what your talking about.

#90 croquest87

croquest87

    Established Member

  • Members
  • PipPipPip
  • 641 posts
  • Gender:Male
  • Location:willoughby
  • Interests:all things mechanical
  • Model:Conquest

Posted 12 May 2018 - 06:01 PM

System is sweet! I use it on my 87 and it works perfect!

#91 Woody

Woody

    Member

  • Members
  • PipPip
  • 347 posts
  • Location:Australia
  • Interests:Starions

Posted 13 May 2018 - 08:24 AM

God damn it, where was this when I was shopping :'(
