I'm trying to get to the bottom of what the thread pitch is for the sensors in the intake manifold.

Professor Quest says:


http://starquest.i-x...opic.php?t=1097


The coolant temperature sensor, EGR thermovalve, and radiator fan switches, are 3/8'' NPT.

Komeuppance says it is M16x1.5


Which is it?


Dad's Conquest Parts - Has Just About Anything You May Need!
Starquest.i-x.net - AGAIN, Home of the S.O.S. Manuals


1.)1987 Conquest TSi - Rio Red - Totalled October 23, 2004
2.)1987 Conquest TSi - Rio Red - Sold
3.)1988 Conquest TSi SHP - Rio Red - Crushed due to Extreme Rot
4.)1985 Starion LE - Seychelles Red/Nevada Sand 2 Tone - Crushed due to Extreme Rot
5.)1988 Conquest TSi - Rio Red - Sold
6.)1988 Conquest TSi - Rio Red - Sold
7.)1986 Conquest TSi - Rio Red - Sold
8.)1987 Conquest TSi - Atlantic Blue Metallic - Totalled July 3, 2010
9.)1987 Conquest TSi - Rio Red - Crushed due to Extreme Rot
10.)1988 Conquest TSi - Rio Red - Crushed due to Extreme Rot
11.)1988 Conquest TSi - Serbia Black - Sold
12.)1986 Conquest Base - Seychelles Red Metallic - Sold
13.)1986 Mitsubishi Starion ESi-R - Sarajevo White - Restoring
14.)1988 Conquest TSi - Rio Red - Sold
15.)1988 Mitsubishi Starion ESi-R - Palermo Grey - Sold
16.)1987 Mitsubishi Starion ESi-R - Serbia Black - Crushed due to Extreme Rot





#2 slowquest

slowquest

    Maybe someday, I'll be FastQuest

  • Members
  • PipPipPip
  • 2,514 posts
  • Gender:Male
  • Location:Cincinnati
  • Model:Conquest

Posted 19 June 2011 - 01:03 AM

You should've made this a poll....

My vote is 16x1.5

#3 87TsiOwner

87TsiOwner

    Established Member

  • Members
  • PipPipPip
  • 525 posts
  • Gender:Male
  • Location:Boring, Oregon
  • Interests:Women, cars and women...
  • Model:Conquest

Posted 19 June 2011 - 01:47 AM

It could be either... only way to find out for sure is to run a die over the sensor.
77 Aspen-Under Construction
87 Conquest-SOLD
92 Dakota-Daily
93 Dakota-Under construction
Posted Image

#4 ucw458

ucw458

    This will mean the extinction of all life forms on this planet.

  • Moderators
  • PipPipPipPipPip
  • 11,645 posts
  • Gender:Male
  • Location:Colorado
  • Model:Conquest

Posted 19 June 2011 - 02:05 AM

Well it's not M16x1.5 on my thread pitch gauge.  It's also not quite 3/8 NPT.  Only goes in 2 threads before binding on a 3/8 NPT hole.  You could force it into a 3/8 NPT hole using teflon tape to make it seal.

My vote is 3/8 british pipe thread since all the other stuff is british pipe thread.

Edited by ucw458, 19 June 2011 - 02:06 AM.

My 87
Posted Image

#5 Komeuppance

Komeuppance

    Amused.

  • Moderators
  • PipPipPipPipPip
  • 13,590 posts
  • Gender:Male
  • Location:The Hills, OR
  • Interests:Starions, and Starion accessories
  • Model:Starion

Posted 19 June 2011 - 02:05 AM

LOL... you quoted that all wrong, but alright.

The radiator fan sensors are M16x1.5mm.

Quote

Bi-Metal Type, Radiator Fan
Switch M16 * 1.5 Metric
Thread Normally open
Closes @ 189 to 199゚F
Opens @ 3 to 10゚F below
closing temp.
Mitsubishi: MB007639
Wells: SW508
Standard: TS-144

-Robert

Posted Image


#6 ucw458

ucw458

    This will mean the extinction of all life forms on this planet.

  • Moderators
  • PipPipPipPipPip
  • 11,645 posts
  • Gender:Male
  • Location:Colorado
  • Model:Conquest

Posted 19 June 2011 - 02:08 AM

View PostKomeuppance, on 19 June 2011 - 02:05 AM, said:

LOL... you quoted that all wrong, but alright.

The radiator fan sensors are M16x1.5mm.


-Robert


Just tested that.  Correct.
My 87
Posted Image

#7 Komeuppance

Komeuppance

    Amused.

  • Moderators
  • PipPipPipPipPip
  • 13,590 posts
  • Gender:Male
  • Location:The Hills, OR
  • Interests:Starions, and Starion accessories
  • Model:Starion

Posted 19 June 2011 - 02:14 AM

If you have one out will you test the thermovalve??

I know the CTS is a different thread than the thermovalve and fan sensor.

-Robert

Posted Image


#8 ucw458

ucw458

    This will mean the extinction of all life forms on this planet.

  • Moderators
  • PipPipPipPipPip
  • 11,645 posts
  • Gender:Male
  • Location:Colorado
  • Model:Conquest

Posted 19 June 2011 - 02:52 AM

View PostKomeuppance, on 19 June 2011 - 02:14 AM, said:

If you have one out will you test the thermovalve??

I know the CTS is a different thread than the thermovalve and fan sensor.

-Robert


Will do

Thermovalve threads match the CTS threads.  I believe they are both 3/8 british pipe thread.  Though they will both fit a 3/8 NPT hole... sortof, A BTPT hole is the proper thread.

BTPT  Industry standard for "British Taper Pipe Thread"



A 3/8 NPT tap is very close but doesn't quite line up with the threads properly.  Further proof is I have a new unused 3/8 NPT brass T here and both sensors only go in about 2 threads before binding.  A 3/8 NPT fitting goes 3-4 threads into that T before snugging up.

Edited by ucw458, 19 June 2011 - 02:57 AM.

My 87
Posted Image

#9 Komeuppance

Komeuppance

    Amused.

  • Moderators
  • PipPipPipPipPip
  • 13,590 posts
  • Gender:Male
  • Location:The Hills, OR
  • Interests:Starions, and Starion accessories
  • Model:Starion

Posted 19 June 2011 - 03:05 AM

Most interesting.  The fan sensor fits in the thermovalve opening, but the CTS doesn't fit in the radiator.

-Robert

Posted Image


#10 quest1988

quest1988

    Member

  • Members
  • PipPipPip
  • 154 posts
  • Gender:Male
  • Location:vista,california
  • Model:Conquest

Posted 19 June 2011 - 03:07 AM

why dont you just pull out the sensor and check the thread pitch on the sensor. or i can do it on monday. have extras

#11 Metric-man

Metric-man

    Stoichiometric

  • Members
  • PipPipPip
  • 4,000 posts
  • Gender:Male
  • Location:socal
  • Interests:Astronomy
    Electrical engineering
    Suspensions
    BBQ
    Surfing
    Trucks
    Weather
  • Model:Starion

Posted 19 June 2011 - 09:59 AM

PQ wrote

Quote

"And after you chase the threads a little deeper........YOU'LL say they are American pipe threads"
I think he means the internal threads are soft and a NPT tap works fine

I would use a metric thread pitch gauge, first on the sensor threads then on the internal aluminum threads, and to achieve a good seal
I would also use teflon thread sealant.
Posted Image

Posted Image

http://www.toolking....832058193&c_j=1

Edited by Metric-man, 19 June 2011 - 10:21 AM.

Posted Image

#12 Chad

Chad

    noob

  • Moderators
  • PipPipPipPip
  • 9,182 posts
  • Gender:Male
  • Location:Lincoln City Oregon
  • Interests:Starquest Fanatic
  • Model:Conquest

Posted 19 June 2011 - 11:29 AM

http://starquest.i-x...ht=thread pitch

Long entertaining read, with pictures and correct thread pitch gages used. in the end PQ admited he was wrong the whole time, but refuses to post correct info because apparently it would make him look worse to admit I was right, than to post bad info :wacko:


the entire car is BSPT pipe threads, except for one fitting on the intake for the automatic bost/vac port, and that is a dry seal NPT (NPTF).

The factory temp gage is not pipe thread, it's 16x1.5, the CTS is 3/8 BSPT.

You can convert any of the BSPT threads to NPT with a tap, but it's a one way street, there is no going back.  Also, if you try to cram a BSPT sensor or fitting into a NPT hole, you will be lucky if it is seals, and will ruin the threads ,but it will usualy work OK if you use a lot of thread sealant (the paste style, not the tape).

#13 ucw458

ucw458

    This will mean the extinction of all life forms on this planet.

  • Moderators
  • PipPipPipPipPip
  • 11,645 posts
  • Gender:Male
  • Location:Colorado
  • Model:Conquest

Posted 19 June 2011 - 03:21 PM

View PostChad, on 19 June 2011 - 11:29 AM, said:

http://starquest.i-x...ht=thread pitch

Long entertaining read, with pictures and correct thread pitch gages used. in the end PQ admited he was wrong the whole time, but refuses to post correct info because apparently it would make him look worse to admit I was right, than to post bad info :wacko:


WOW.... just wow  :rolleyes:
My 87
Posted Image

#14 Komeuppance

Komeuppance

    Amused.

  • Moderators
  • PipPipPipPipPip
  • 13,590 posts
  • Gender:Male
  • Location:The Hills, OR
  • Interests:Starions, and Starion accessories
  • Model:Starion

Posted 19 June 2011 - 04:37 PM

LMAO... five pages... really...

-Robert

Posted Image


#15 ColdScrip

ColdScrip

    Established Member

  • Members
  • PipPipPip
  • 1,703 posts
  • Gender:Male
  • Location:Gainesville, FL
  • Model:Other

Posted 19 June 2011 - 05:01 PM

View PostChad, on 19 June 2011 - 11:29 AM, said:

http://starquest.i-x...ht=thread pitch

Long entertaining read, with pictures and correct thread pitch gages used. in the end PQ admited he was wrong the whole time, but refuses to post correct info because apparently it would make him look worse to admit I was right, than to post bad info :wacko:


the entire car is BSPT pipe threads, except for one fitting on the intake for the automatic bost/vac port, and that is a dry seal NPT (NPTF).

The factory temp gage is not pipe thread, it's 16x1.5, the CTS is 3/8 BSPT.

You can convert any of the BSPT threads to NPT with a tap, but it's a one way street, there is no going back.  Also, if you try to cram a BSPT sensor or fitting into a NPT hole, you will be lucky if it is seals, and will ruin the threads ,but it will usualy work OK if you use a lot of thread sealant (the paste style, not the tape).


You have got to be kidding me...
Follow my '87 restore here.


#16 kev

kev

    Moderator

  • Moderators
  • PipPipPipPip
  • 5,031 posts
  • Gender:Male
  • Location:PA
  • Model:Other

Posted 13 January 2016 - 07:20 AM

Found this old post on a search.  Some good info worth moving to the FAQ section.

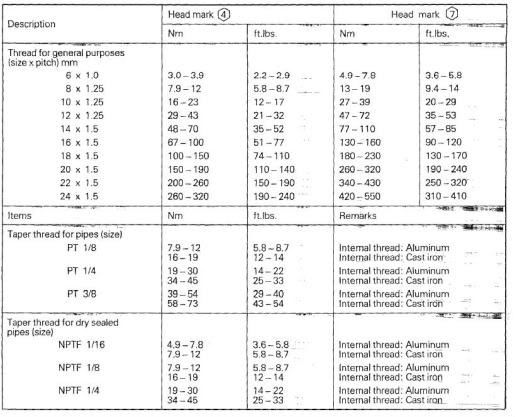

Take a look at how similar, yet so different, BSPT pipe threads are to NPT.  Some of the sizes have the same size and pitch but the thread has a different angle.
